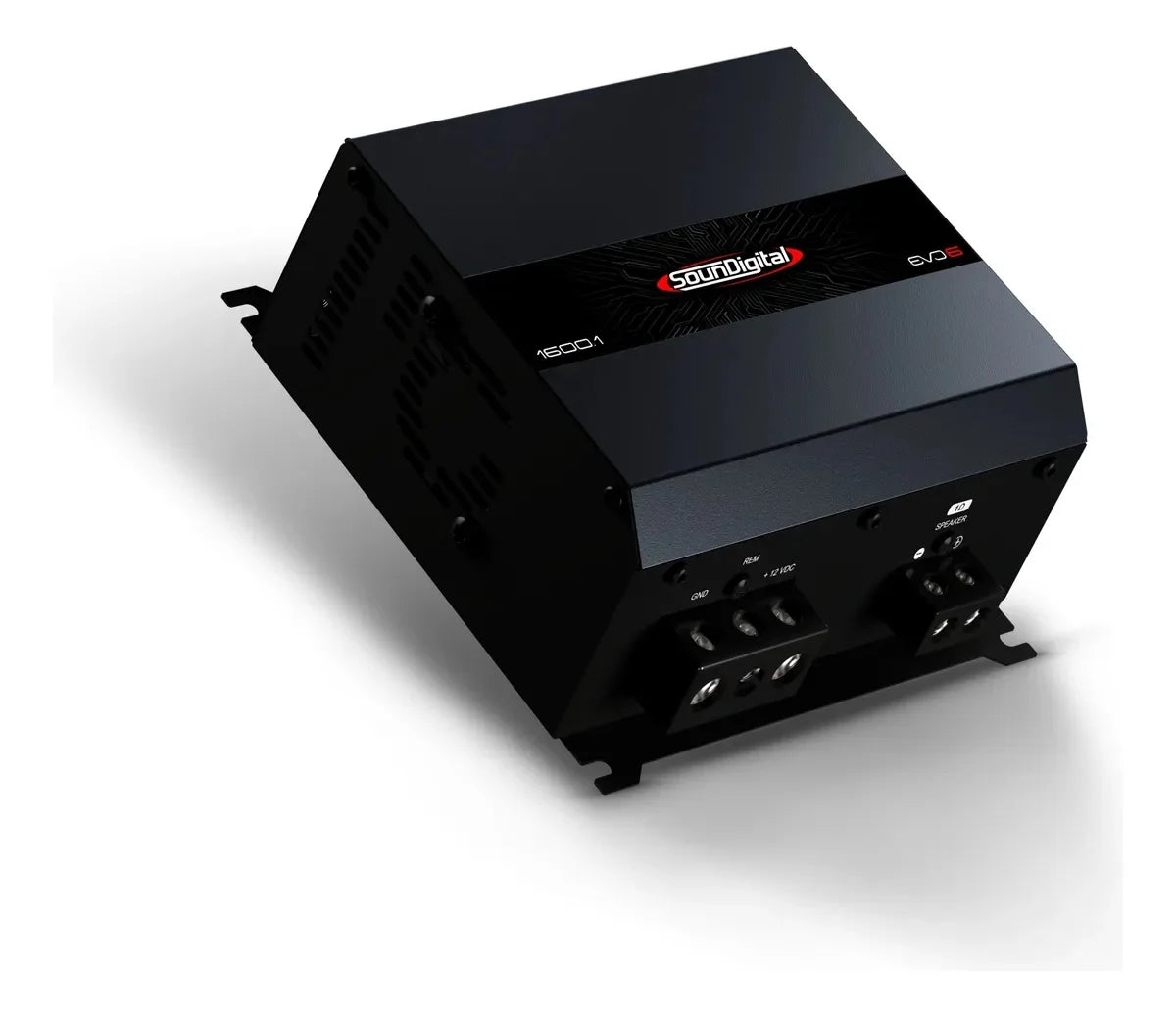

SounDigital 1600.1 EVO-6 – 1600W RMS Mono (1 Ω)
SounDigital 1600.1 EVO-6 – 1600W RMS Mono (1 Ω)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Soundigital 1600.1 EVO-6 – 1600 W RMS Mono Amplifier (1 Ω)
The Soundigital 1600.1 EVO-6 amplifier is a powerful mono module, designed to deliver up to 1600 W RMS at 1 Ω with clean and dynamic sound reproduction. Its modern components and advanced technology ensure optimal efficiency for subwoofer installations and demanding bass systems. :contentReference[oaicite:0]{index=0}
Compact and robust, it easily integrates into confined spaces while offering surprising power, suitable for high-performance car audio setups. :contentReference[oaicite:1]{index=1}
Technical Specifications
| Configuration | Mono |
|---|---|
| RMS Power @ 1 Ω | 1 × 1600 W |
| RMS Power @ 2 Ω | 1 × 1056 W |
| RMS Power @ 4 Ω | 1 × 697 W |
| Frequency Response (-3 dB) | 5 Hz – 25 kHz |
| Subsonic Filter | 5 Hz – 80 Hz |
| Low-Pass Filter | 50 Hz – 1 kHz |
| Bass Boost @ 50 Hz | 0 dB – 12 dB |
| Power Supply Voltage | 9 V – 16 V |
| Signal-to-Noise Ratio (SNR) | ≈ 94 dB |
| Input Sensitivity | 0.2 V – 2 V |
| Consumption (Music) | ≈ 75 A |
| Consumption (Max) | ≈ 149 A |
| Damping Factor | > 2000 |
| Recommended Power Cable | 16 mm² (5 AWG) |
| Dimensions | ≈ 18 × 13.6 × 5.5 cm |
| Weight | ≈ 1.5 kg |
