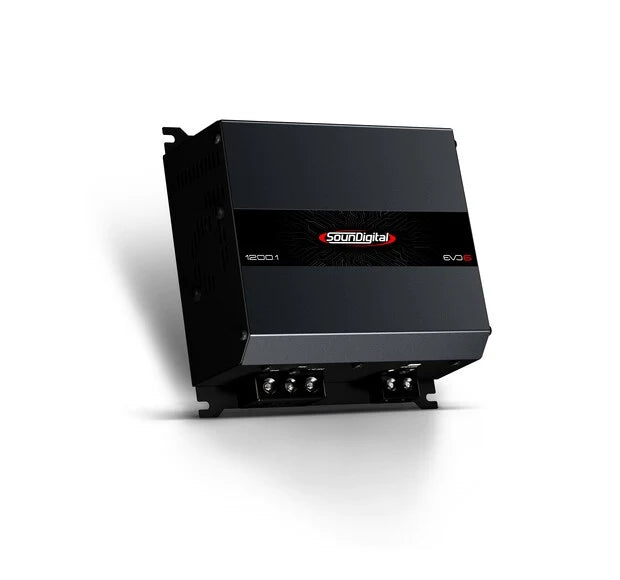

SounDigital 1200.1 EVO6 – 1200 W RMS mono (1 Ω)
SounDigital 1200.1 EVO6 – 1200 W RMS mono (1 Ω)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
SounDigital 1200.1 EVO6 – 1200 W RMS Mono Amplifier (1 Ω)
The SounDigital 1200.1 EVO6 amplifier is a compact and powerful mono module, optimized to deliver up to 1200 W RMS at 1 Ω. Its modern design allows it to deliver high power while maintaining clean and precise sound reproduction, ideal for powering powerful subwoofers. :contentReference[oaicite:1]{index=1}
Designed for demanding car audio installations, this EVO6 model combines efficiency, robustness, and compactness for easy integration even in tight spaces. :contentReference[oaicite:2]{index=2}
Technical Specifications
| Configuration | Mono |
|---|---|
| RMS Power @ 1 Ω | 1 × 1200 W |
| RMS Power @ 2 Ω | 1 × 800 W |
| RMS Power @ 4 Ω | 1 × 532 W |
| Frequency Response (-3 dB) | 5 Hz – 20 kHz |
| Low Pass Filter | 80 Hz – 20 kHz |
| Subsonic Filter | 5 Hz – 80 Hz |
| Bass Boost @ 50 Hz | 0 dB – 12 dB |
| Input Sensitivity | 0.2 V – 2 V |
| Signal-to-Noise Ratio (SNR) | ≈ 94 dB |
| Supply Voltage | 9 V – 16 V |
| Current Consumption (Music) | ≈ 54 A |
| Max Consumption | ≈ 108 A |
| Dimensions (L × D × H) | ≈ 14.7 × 12.9 × 6.6 cm |
| Weight | ≈ 1.2 kg |
