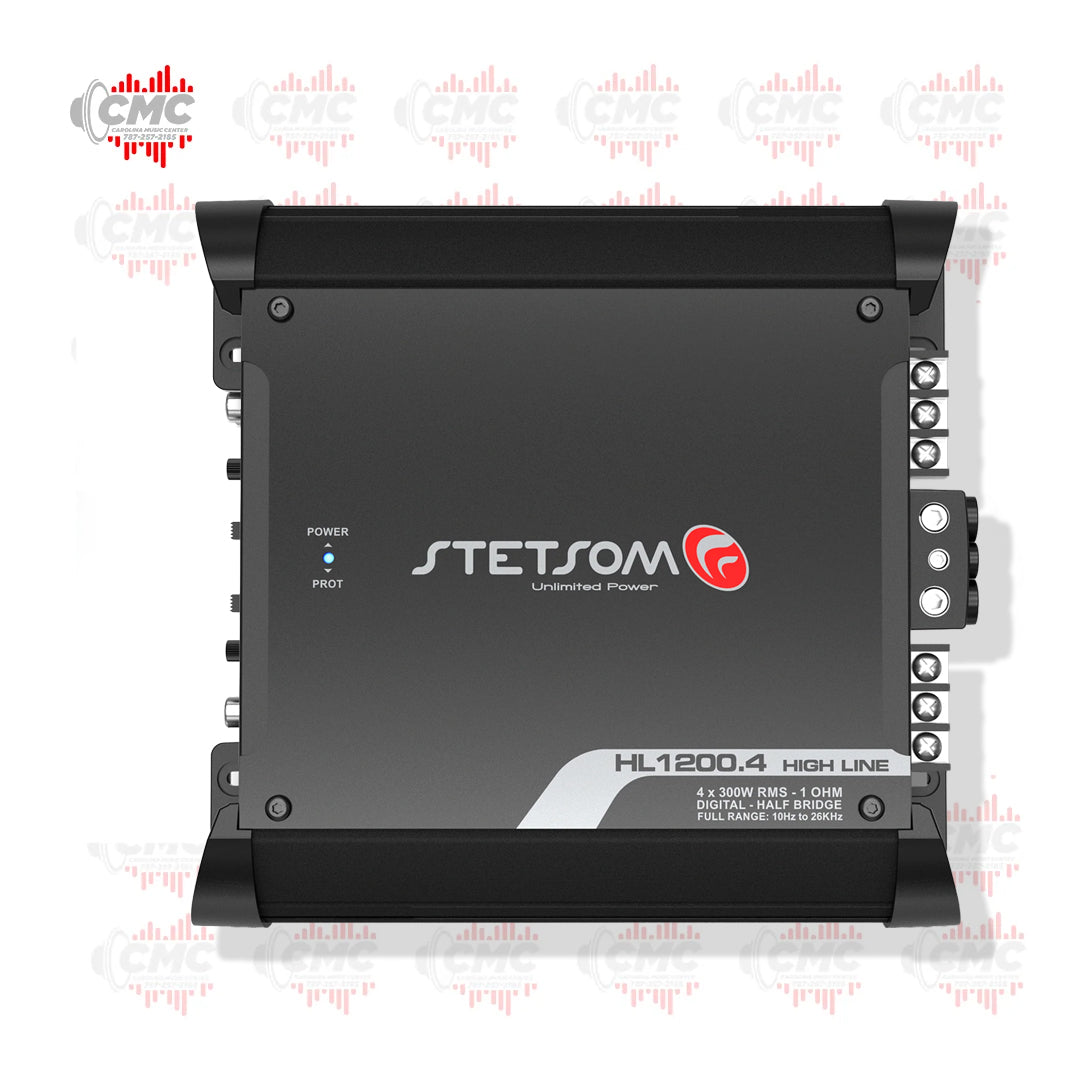

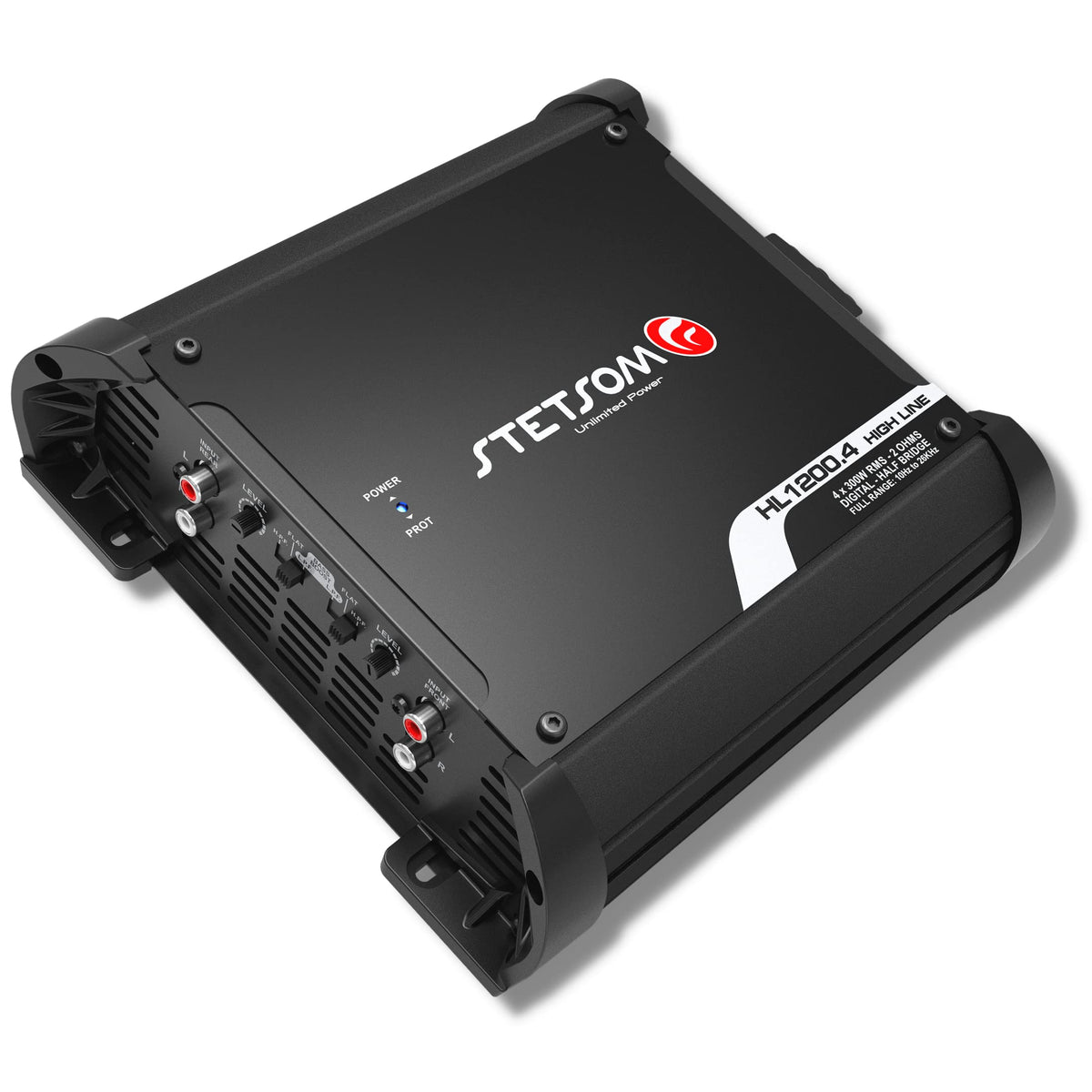

Stetsom HL 1200.4

echnical data:

• Model: Stetsom HL 1200.4 - 2 Ohm
• Channels: 4
• RMS power: 1,200 W RMS
• Minimum output impedance:
  • Stereo: 2 OhmBridge
  • : 4 Ohm


Power at 14.4 V (1 Ohm version)

• 4 × 350 W RMS @ 1 Ohm (stereo)
• 4 × 220 W RMS @ 2 Ohm (stereo)
• 2 × 700 W RMS @ 2 Ohm (bridge)


Power at 14.4 V (2 Ohm version)

• 4 × 357 W RMS @ 2 Ohm (stereo)
• 4 × 217 W RMS @ 4 Ohm (stereo)
• 2 × 715 W RMS @ 4 Ohm (bridge)


Further technical data

• Supply voltage: 9 V - 15 V DC
• Frequency response: 19 Hz - 26 kHz
• Low-pass filter: 90 Hz
• High-pass filter: 90 Hz
• Signal-to-noise ratio: > 90 dB
• Distortion factor (THD): > 0.3 %
• Input sensitivity: 200 mV
• Input impedance: 15 kOhm
• Current consumption music signal: 58 A
• Current consumption bass signal: 116 A


Connections & features

• 4-channel full-range Class-D amplifier
• Independent front and rear channel control
• Switchable between HPF / LPF / FULL
• Stereo and bridge operation possible
• Suitable for: Front systems, midrange, tweeter and smaller subwoofer applications
• Protective circuits against overheating, short circuits and voltage fluctuations



Dimensions & weight

• Dimensions (H × W × L): approx. 7.8 × 23.5 × 18.3 cm
• Weight: approx. 1.9 kg
